Screw Compressors CSH - VSK4151-20

Bitzer Screw Compressor VSK - VSK4151-20

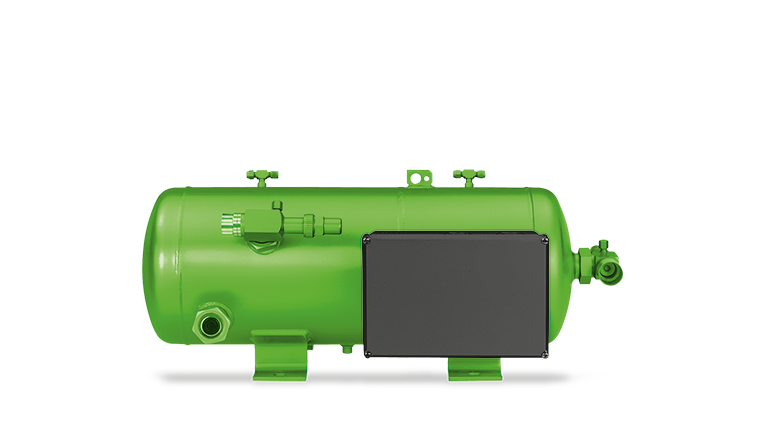

Screw Compressor VSK - VSK4151-20

The hermetic compact screws add to the screw compressor range in the lower capacity range. They are suitable for use in factory assembled air conditioning units, liquid chillers and especially for air conditioning in railway carriages. Thanks to the built-in oil reservoir and separation system, the compact design enables easy installation. With their thin design, low weight and smooth running over a wide range of speeds, the compressors meet the increasing requirements of confined roof and under-floor spaces.

  • Simple, robust design
  • Low weight, Low space requirements
  • Low levels of noise and vibrations
  • Optimised design for R134a
  • Ester oil charge. Generously sized roller bearing, allowing for high reliability and a long service life
Type Displacement Max. pressure (LP/HP) Connection suction line Connection discharge line Weight Oil type R134a Frequency range
2900 RPM 50 Hz 3500 RPM 60 Hz
SI 71 m3/h 85 m3/h 19 / 25 bar 42 mm - 1 5/8'' 35 mm - 1 3/8'' 151 kg BSE170 (Standard) 20..87 Hz
IP 2507 CFH 3001 CFH 275 / 363 psi 42 mm - 1 5/8'' 35 mm - 1 3/8'' 332 lb BSE170 (Standard) 20..87 Hz

Extent of delivery (Standard)

Type Oil separator Oil filter Discharge shut-off valve Suction shut-off valve Motor protection Enclosure class Oil charge
SI Standard Standard Standard Standard INT69VSY-II (Standard) IP54 4,0 dm3
IP Standard Standard Standard Standard INT69VSY-II (Standard) IP54 140,8 fl oz

Available Options

Type Bridges for DOL start Special edition (on request)
SI Option Option
IP Option Option
